30*30cm Led Panel Light

Item No.: PL3030-18W
1. High efficiency,100LM/W,120LM/W,150LM/W,180LM/W
2. Optional 0-10V,Dali Dimming,CCT Tunable
3. No flicker,no glare,very soft and even light
4. Pendant,Recessed or Surface Mounted Installation
5. Long life span,over 100,000hrs
Request Quote
Description Product Dimension User Manual Application Cases

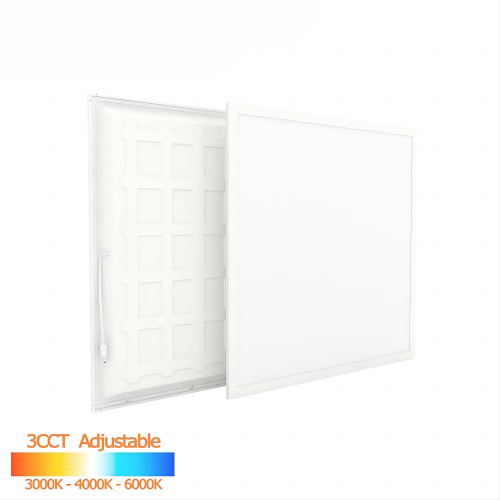

                              CCT led panel light
Dali led panel light     backlit led panel light-1     backlit led panel light-2     backlit led panel light-3

Product Features:

1. High efficiency & energy saving.Under the condition of the same llumination,it saves more than 80%
    energy compared with the traditional lamp;
2. High performance external constant current drivers,no stroboscopic,good for eyesight protection;
3. Eco-friendly,No Hg & Xe ,or other harmful element.Recyclable,also it won’t generate EMI;
4. No UV & IR.It won’t distribute ray radiation;
Does not contain environmentally harmful mercury pollution,green,Energy saving;
6. Long life span,using semiconductor chip as the light resource,the life can be over 100,000hrs;

Product Specification:

A.General data

Product Name CCT Led Panel Light
Model PL3030-18W
Input Voltage  100-277VAC
Frequency  50/60 Hz
Power Consumption 18W
Power Factor >0.9
Optical design  120°
IP Rating IP44/IP65
Operating Temperature -25°C~+45°C
Storage Temperature -25°C~+65°C
Relative Humidity 10%-90%
LED Lifetime > 100,000 hrs @ LM70,LM80
Safety Standards CE&Rohs

B. Light Data
Model                                                                  PL3030-18W
Light Source          Luminus 2835 Chips
LED QTY        32PCS
Colour Temperature           2700~6000K
Luminous Flux         1800lm or Customized
Luminous Efficiency          100lm/w,120lm/w,150lm/w,180lm/w
Colour Rendering Index         >80Ra(90Ra)

C. Packing Data
Model                 PL3030-18W
Product Dimension           295*295*30mm
Pcs/CTN      20
Package Dimensions          655*300*370mm
Net weight       9.75KG
Gross weight     13.1KG
  • Be sure disconnect power before installing, don’t construction with electricity.
  • Product working voltage is AC100~277V,50/60Hz,Please do not exceed the working voltage range.
  • Input product line, brown is “L”,  blue is “N” ,  yellow-green is GND.
  • Be sure wiring is closed and prevent leakage, when installing.
  • The lamp can not be used in violation of any fire regulations.

Installation and schematic:

Slim Led panel light use slim shell,very simple and fashionable.Recessed led panel light available for your various applications,slim led panel downlight good for your choice.
